Bethesda Sidings

Discussion in 'Entries' started by Captain Kernow, 25 April 2017.

  1. Captain Kernow

    Captain Kernow Western Thunderer

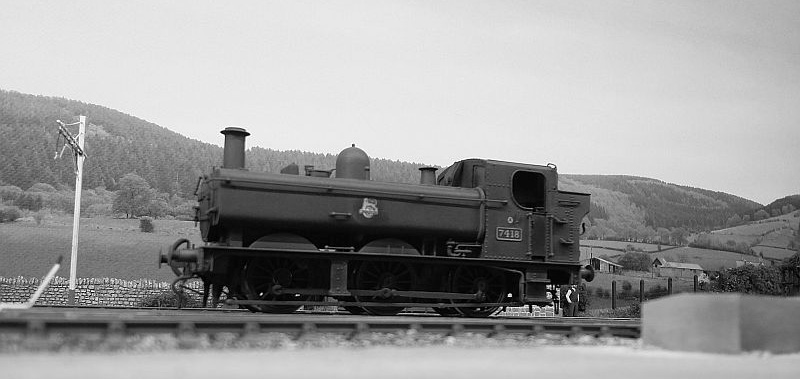

    I have now finished 7418 and she is seen here arriving at Bethesda Sidings with a short goods working:

    The loco stabled on the stop blocks in the yard:

    A worm's eye view:

    I've also been getting a couple of RTR locos ready for use on the layout. This really only involves running in, replacing the couplings and weathering. Both of these are light railway locos, although the Sentinel would only really have been used in the military depot at Llanddewi, at the end of the Vale of Radnor Light Railway.

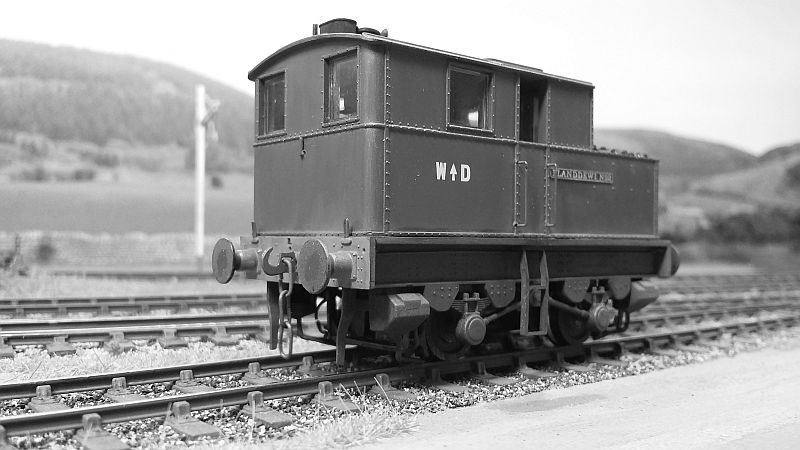

    Sentinel 'Llanddewi No. 2' arrives at Bethesda with a short working for transfer to British Railways:



    Stabled at the stop blocks:

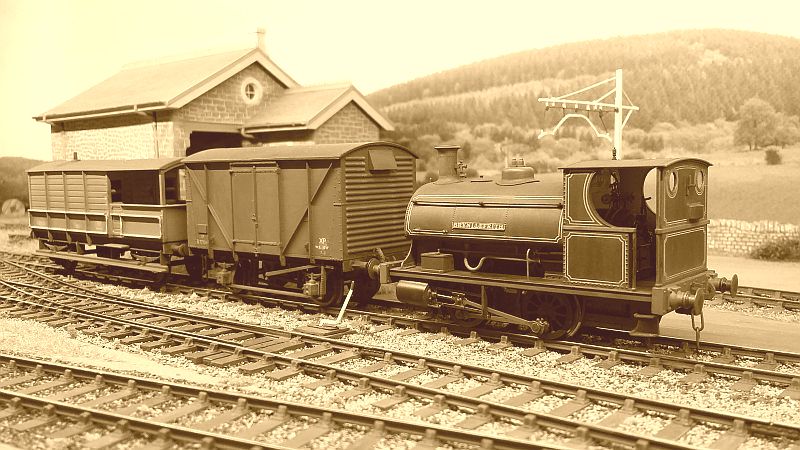

    Also completed is the Peckett 'Brynllefrith', named after one of the villages served by the Vale of Radnor Light Railway:


    Here's a short sequence, showing the Peckett arriving in the yard and 7418 departing -
    Giles, pricei, 76043 and 21 others like this.
  2. Captain Kernow

    Captain Kernow Western Thunderer

  3. NHY 581

    NHY 581 Western Thunderer

    Very nice.

    You've inspired me to weather a second Peckett, young Captain.

  4. Captain Kernow

    Captain Kernow Western Thunderer

    Well, I shall look forward to seeing the results!

    Is it another green one or a different colour and does the base livery influence how you weather it?
    AdeMoore likes this.
  5. NHY 581

    NHY 581 Western Thunderer


    I have a green one with a whistle that has gone awol.

    I also have a blue example as per yours, Tim.

    As for the weathering, I enjoyed the first one. However, I think the blue example will not be quite so distressed.......

    We shall see.......

  6. LarryG

    LarryG Western Thunderer

    I found this layout very inspiring from the day I came across it. A few years ago, I used to sit in the railway shed just watching and listening to a DCC sound-fitted 4mm 'Grange' moving slowly back and forth on a length of track and a turnout. But when I went on to construct a layout, this simple pleasure disappeared, yet for some reason I could imagine the pleasure of watching that 'Grange' in your Bethesda Sidings.

    The penny dropped when a good friend showed me his latest 4mm 'plank' and my thoughts immediately turned to Bethesda sidings. The action was taking place in front of my eyes, not some distance up a 14' shed or outside in the garden, and it reminded me of my lineside train-watching days. It's time for a complete re-think.
    Last edited: 19 August 2020
  7. LarryG

    LarryG Western Thunderer

    Captain, I wondered how wide your baseboard is?
  8. Captain Kernow

    Captain Kernow Western Thunderer

    Hi Larry, thanks for the very kind words. I'd forgotten how wide the baseboard is, so I've just checked and it's 16" (length is 4' 6", plus fiddle yard).
  9. LarryG

    LarryG Western Thunderer

    16 inches....Thanks for that.
  10. Captain Kernow

    Captain Kernow Western Thunderer

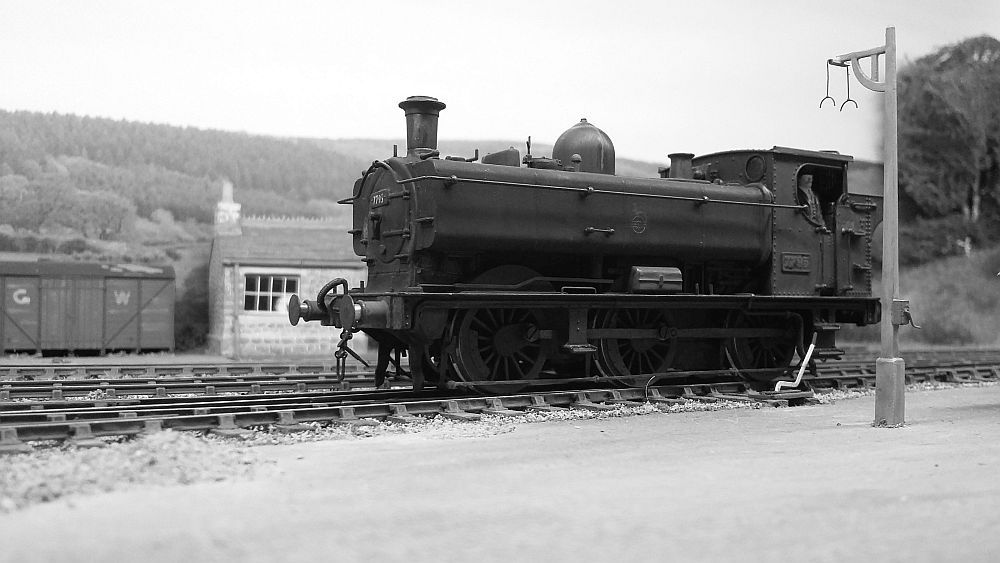

    A pannier waits in the yard for the shunter to finish his brew in the adjacent cabin:
    AdeMoore, LarryG, gwrrob and 7 others like this.
  11. LarryG

    LarryG Western Thunderer

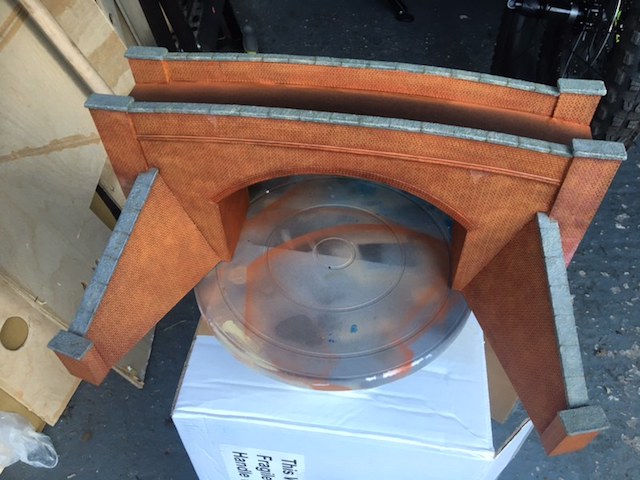

    Hi Captain, I am building a road bridge with a similar function to yours i.e.: carrying a farm track, and I was wondering how wide your road is. It would be useful to know seeing as I have no 7mm scale road vehicles at the mo.

    Thanks in advance.
  12. GrahameH

    GrahameH Western Thunderer

    Hi Larry,

    The good Captain is aware of my bridge build and vehicle so I am sure he won't mind me posting in an attempt to help if I may.

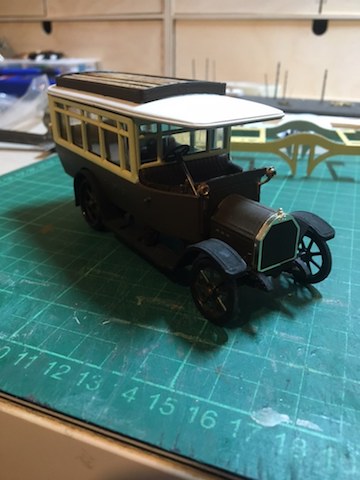

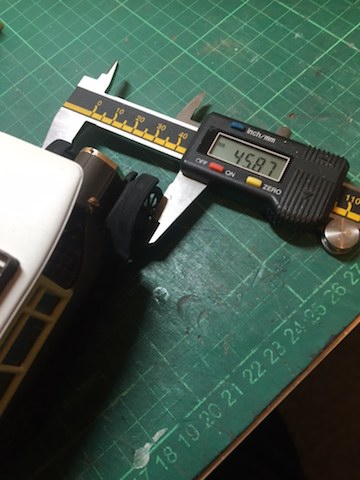

    Here is a 1:43 scale model which I converted from a "foreign model bus" last year showing the width if it helps. The bridge WON'T be accommodating the bus it as I have made the bridge as a scenic break to the fiddle yard but it may give you some ideas.

    GWR Bus.jpg

    GWR Bus 2.jpg


    The distance between the brickwork is 64mm.

    Captain Kernow and LarryG like this.
  13. Pencarrow

    Pencarrow Western Thunderer

    There were standards laid down for the carriageway widths when the railways were built. This depended on the standard of road being carried. I have this info somewhere if you're interested Larry?
    LarryG and simond like this.
  14. LarryG

    LarryG Western Thunderer

    Thank you both for getting back to me. The bus width measurement is something to work on. The road I fitted two days ago was much wider and was based on dimensions of the road over Carrog station. But I now realize the construction of my model represents a bridge with light loading so a dirt path will be fitted now similar to access bridges we have around North Wales.

    Best wishes for Christmas,
    GrahameH likes this.
  15. Alan

    Alan Western Thunderer

    My two bridges carrying tracks over the line on Blakeney are 70mm wide. Wide enough for a Land Rover to traversewith room to spare.
    LarryG likes this.
  16. Captain Kernow

    Captain Kernow Western Thunderer

    Hi Larry,

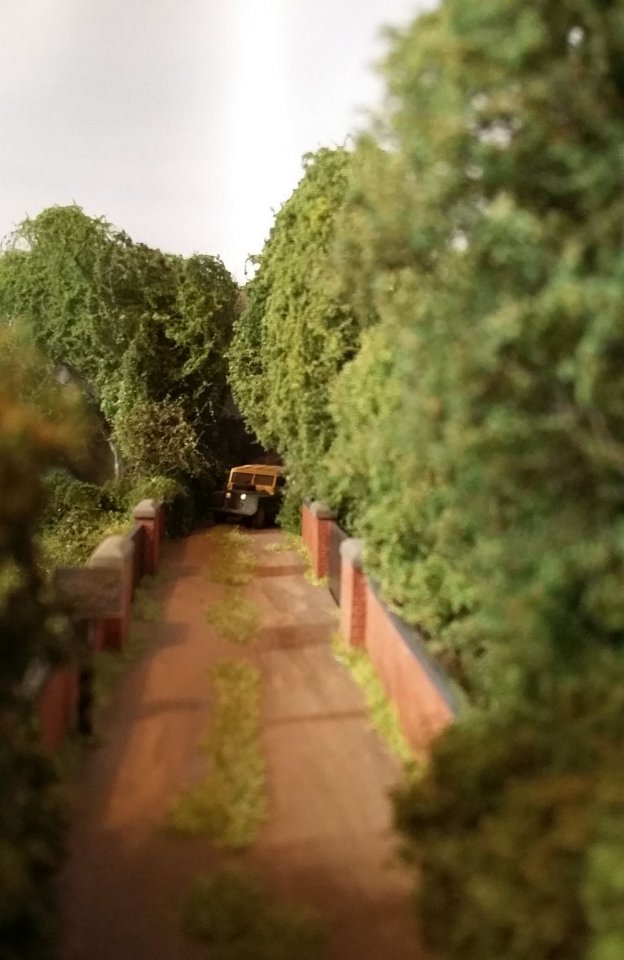

    The road over my bridge is a farm access track only. The width between the two girders is 47 mm. Hope that helps (the Landrover belongs to the farmer, by the way!).

    JasonBz, chrisb, Joe's Garage and 6 others like this.
  17. Joe's Garage

    Joe's Garage Western Thunderer

    Hi Tim, as per usual I am very late in on the act but I have to say I have this a very interesting and inspiring layout. Sometimes I did forget it was 4 mm!

    Thank you for posting this little saga.

    All the best
