That’s impressive, Adrian,

my 40W CO2 struggles with more than a few mm of MDF so 15mm ply is way beyond it. Is that in a single cut?

I hadn’t realised I could do an offset from the red dot in Lightburn. A case of RTBM, I guess… :)

adrian

adrian

Flying Squad
simond said:
That’s impressive, Adrian,

my 40W CO2 struggles with more than a few mm of MDF so 15mm ply is way beyond it. Is that in a single cut?

I hadn’t realised I could do an offset from the red dot in Lightburn. A case of RTBM, I guess… :)
Click to expand...
No it's multiple cuts (15-20) but at 2000mm/min - this is the video showing the capability (2 mins) and making the pointer offset (5:30) and measuring and setting up Lightburn software with the offset.

BrushType4

BrushType4

Western Thunderer
Further along our journey through the Didcot buildings we have the ash shed. This is a 7mm scale building and is approx half the scale length it should be but at 480mm is still a useful length while being more realistic for a model layout.
Our assistant is keeping a close watch.


Nice asbestos roof. We do have larger corrugated card but I prefer this one.

Osgood

Osgood

Western Thunderer
Thanks Phil - just measured up so might as well share the result (E&OE :rolleyes:).

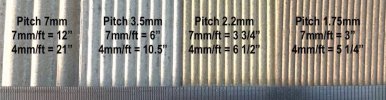

Two are spot on for 7mm Big 6 asbestos (6" pitch) and steel corrugated (3" pitch):

Intentio corrugated sheet.jpeg

For 3mm the 1.75mm pitch equates to 7" pitch so pretty good for Big 6.
For S scale the 2.2mm pitch gives 5 1/2" pitch so again ok for Big 6.

Last edited:
Pencarrow

Pencarrow

Western Thunderer
BrushType4 said:
I’ve tried the larger corrugated card on a 7mm test section of a Southern Traders Stores we’ve been asked to produce. This is our second largest type and works perfectly in my eyes for this building.

View attachment 203349View attachment 203350View attachment 203351
Click to expand...

Nice. Laser kits really suit the modular nature of these buildings. Will be a good addition to your range.

Out of interest, how robust is the card roof material? I've had bad experiences of buildings, actually scenics in general, not being treated with care when exhibiting. I can imagine errant tools or big clodhopping hands squishing delicate corrugated materials. I've got the "last minute major building repairs" t-shirt.

It's one of the reasons I keep going back to the Wills corrugated asbestos sheets - they are bulletproof. Downside is that they require work to thin the visible edges down, but it's doable with care.


BrushType4

BrushType4

Western Thunderer
The card has no construction qualities at all. If you notice, I support the card usually with 2mm thick MDF. I’ve done so here as well. It’s the compromise one must make when designing lasercut kits or any modelling I guess. As long as it looks right and the main dimensions are correct I’m happy.

Your buildings are lovely and i would think in your hands any building made from any medium would end up looking fantastic.

Pencarrow

Pencarrow

Western Thunderer
BrushType4 said:
The card has no construction qualities at all. If you notice, I support the card usually with 2mm thick MDF. I’ve done so here as well. It’s the compromise one must make when designing lasercut kits or any modelling I guess. As long as it looks right and the main dimensions are correct I’m happy.

Your buildings are lovely and i would think in your hands any building made from any medium would end up looking fantastic.
Click to expand...

Thanks for the kind comments, much appreciated. I always surprise myself when the buildings are finished - there's never much detailed planning done and a lot of it is made up as I go. Probably why I'm drawn to the more rustic and lived in type prototypes!

Really must have a chat with you about the windows, staircase and other bits for the LSWR signal box for Pencarrow.

Deano747

Deano747

Western Thunderer
Pencarrow said:
Thanks for the kind comments, much appreciated. I always surprise myself when the buildings are finished - there's never much detailed planning done and a lot of it is made up as I go. Probably why I'm drawn to the more rustic and lived in type prototypes!

Really must have a chat with you about the windows, staircase and other bits for the LSWR signal box for Pencarrow.
Click to expand...
Hi Chris, would that be a LSWR Type 4 signal box, by any chance?

Regards
Rob
